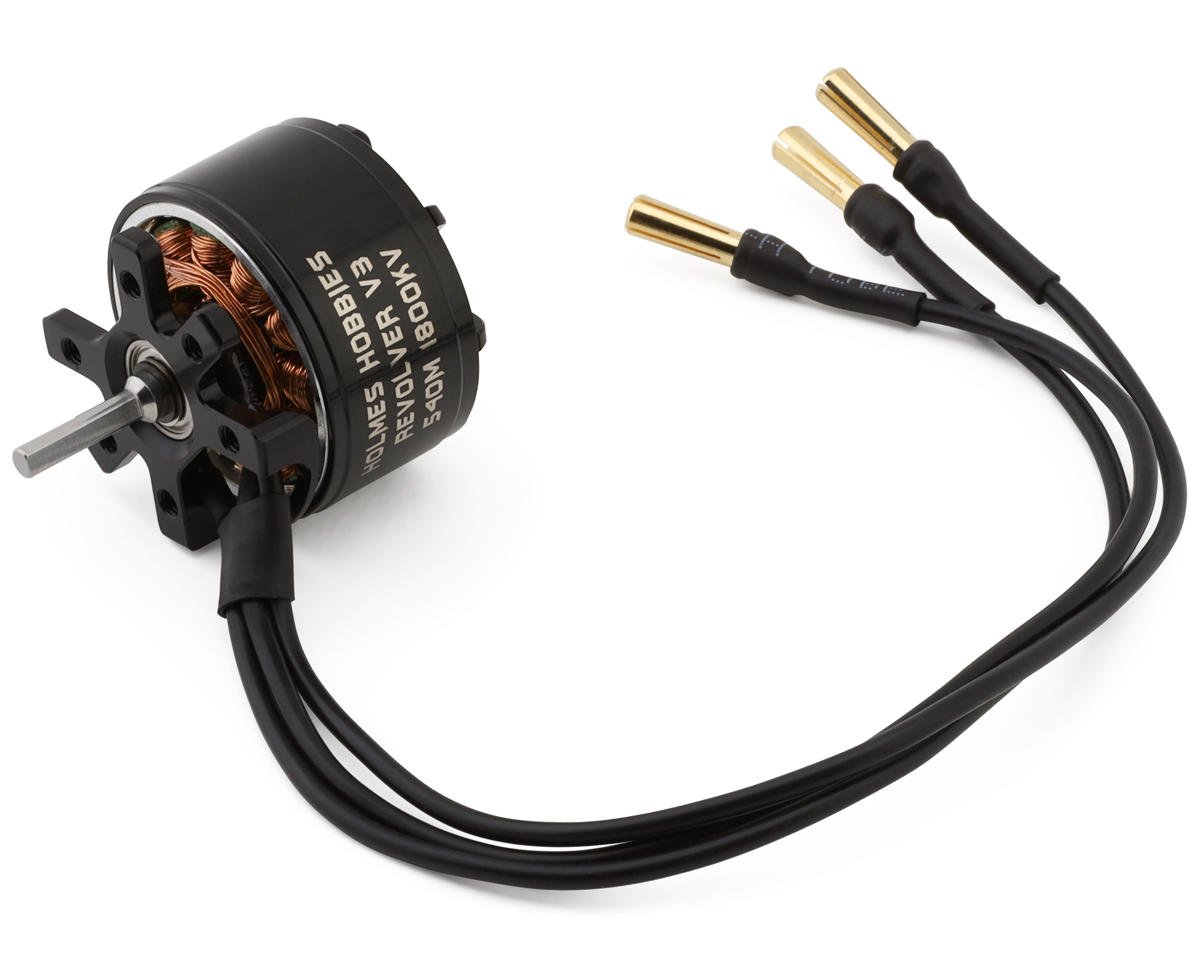

Holmes Hobbies Revolver V3 540M Snubnose Sensorless Brushless Outrunner Motor [HHB120100109]

Motor Overview:

Holmes Hobbies Revolver V3 540M Sensorless Snubnose Brushless Outrunner Motor. brings unmatched torque and slow speed control in a small and lightweight package. Designed to offer incredible low-speed control for high performance Comp rock crawlers that are looking for a lightweight motor without sacrificing torque and buttery low-speed control!

The Revolver V3 540M features the exclusive Holmes chrome-plated magnets that offer buttery smooth industry-leading startup without sacrificing torque, drag brake and static hold! Fitted with the V3 ultralight housing, precision magnet retention assembly and a standard 540 1/8″ D shaft output to fit most common R/C pinion gears.

NOTE:

• To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
• Designed for rigs up to 7.5 pounds, but can be run on heavier rigs with proper gearing.
• 540 Snubnose is NOT recommended for “rock racers” and 2-speed vehicles, such as the TRX4.

Features:

• Original Holmes magnetics and housing design
• Perfect for competition rigs in need of a compact and lightweight high-performance motor
• Small and light, yet higher torque than 540 brushed motors
• V3 ultralight housing
• Supreme low resistance
• Monster torque levels with a compact design
• Chrome plated magnets
• Precision magnet retention assembly
• Standard 540 1/8″ D shaft output

Specifications:

• Type: Brushless Sensorless
• kV Rating: 1800kV
• Input Voltage: 2-4S (7.4-14.8V) LiPo
• Diameter: 1.4in (35.56mm)
• Length: 1.2in (31mm)
• Weight: 106g (3.73oz)
• Poles: 14
• Stator: 1.102×0.62in (28x16mm)
• Connector: 4mm Bullets

Includes:

• (1) Revolver V3 540M Snubnose Sensorless Brushless Outrunner Motor

This product was added to our catalog on June 5, 2024
