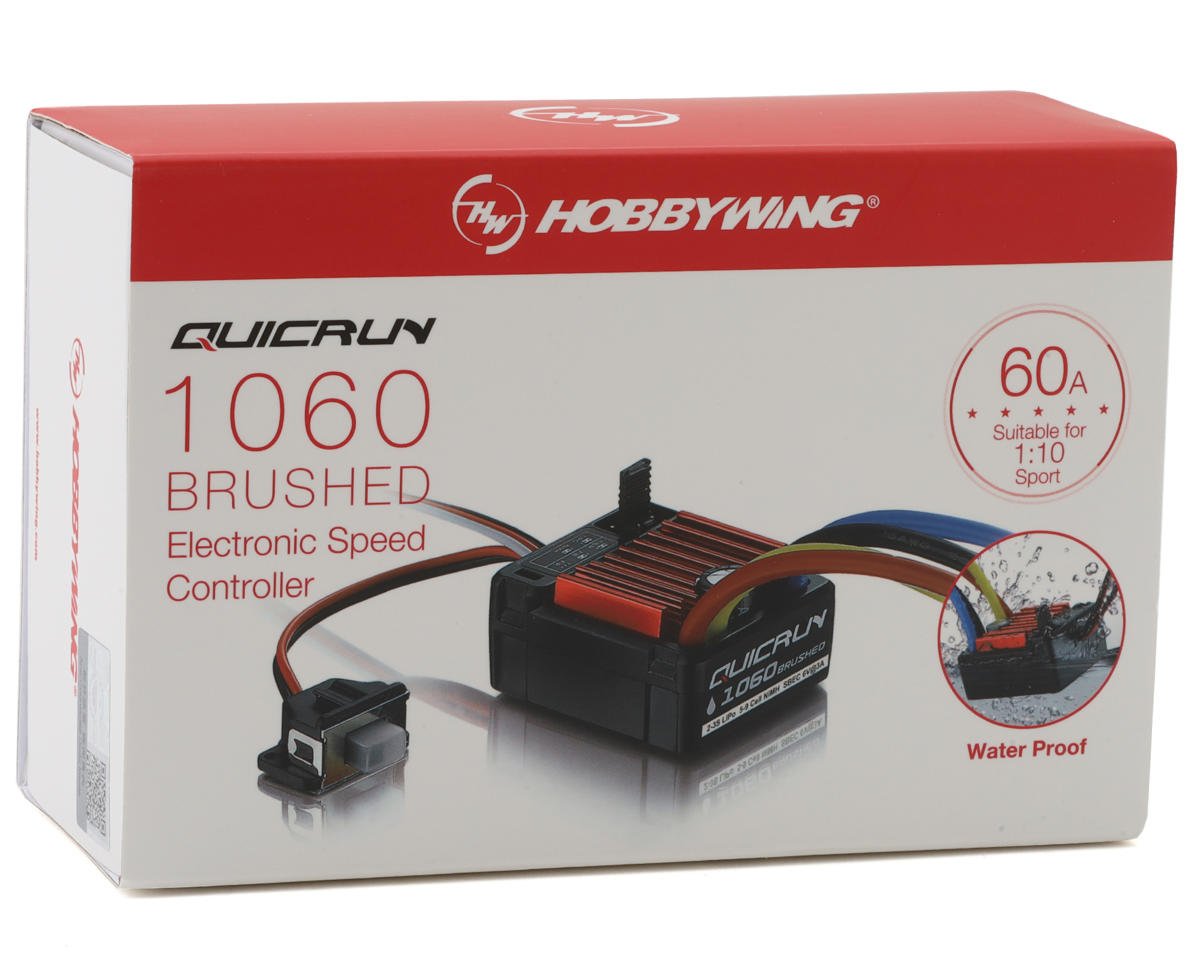

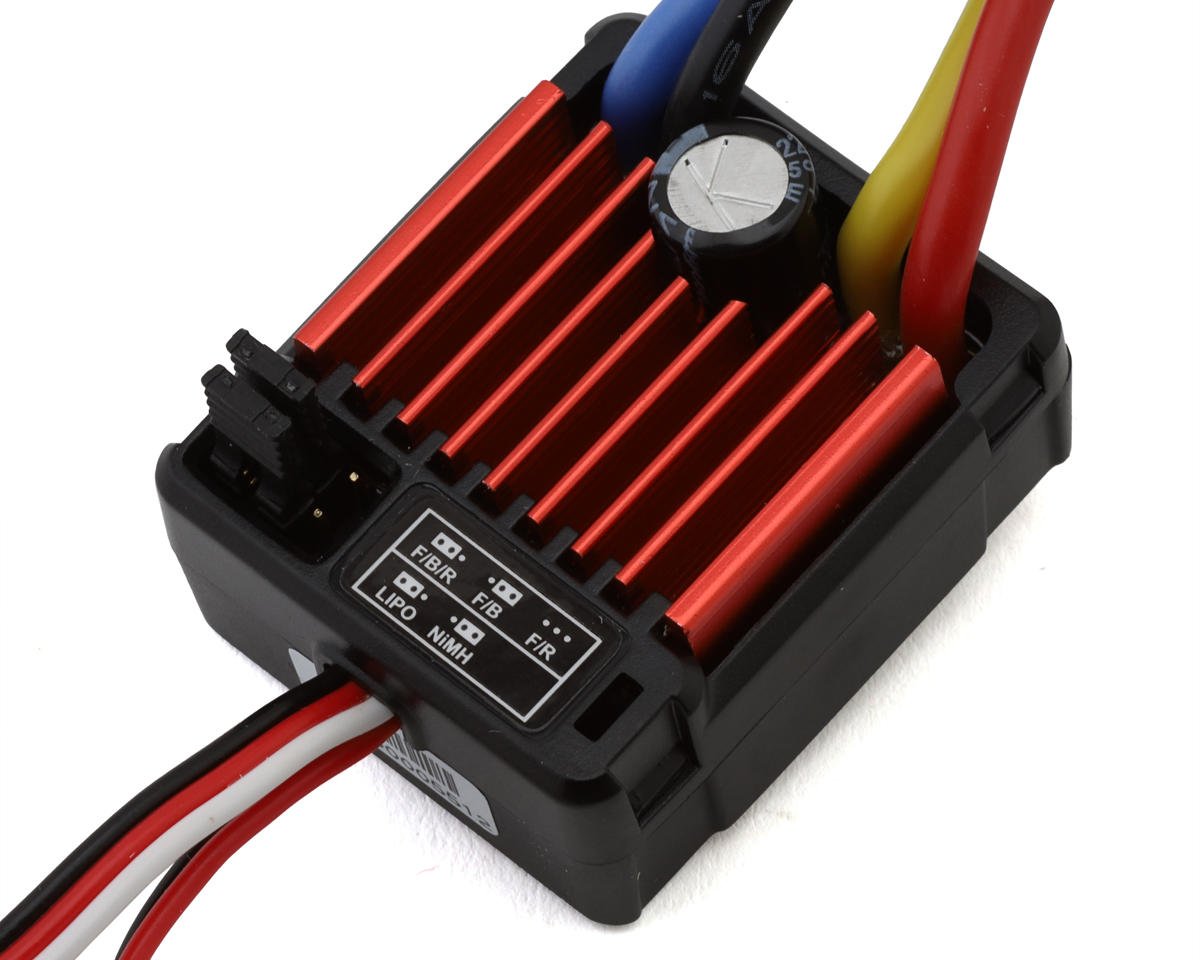

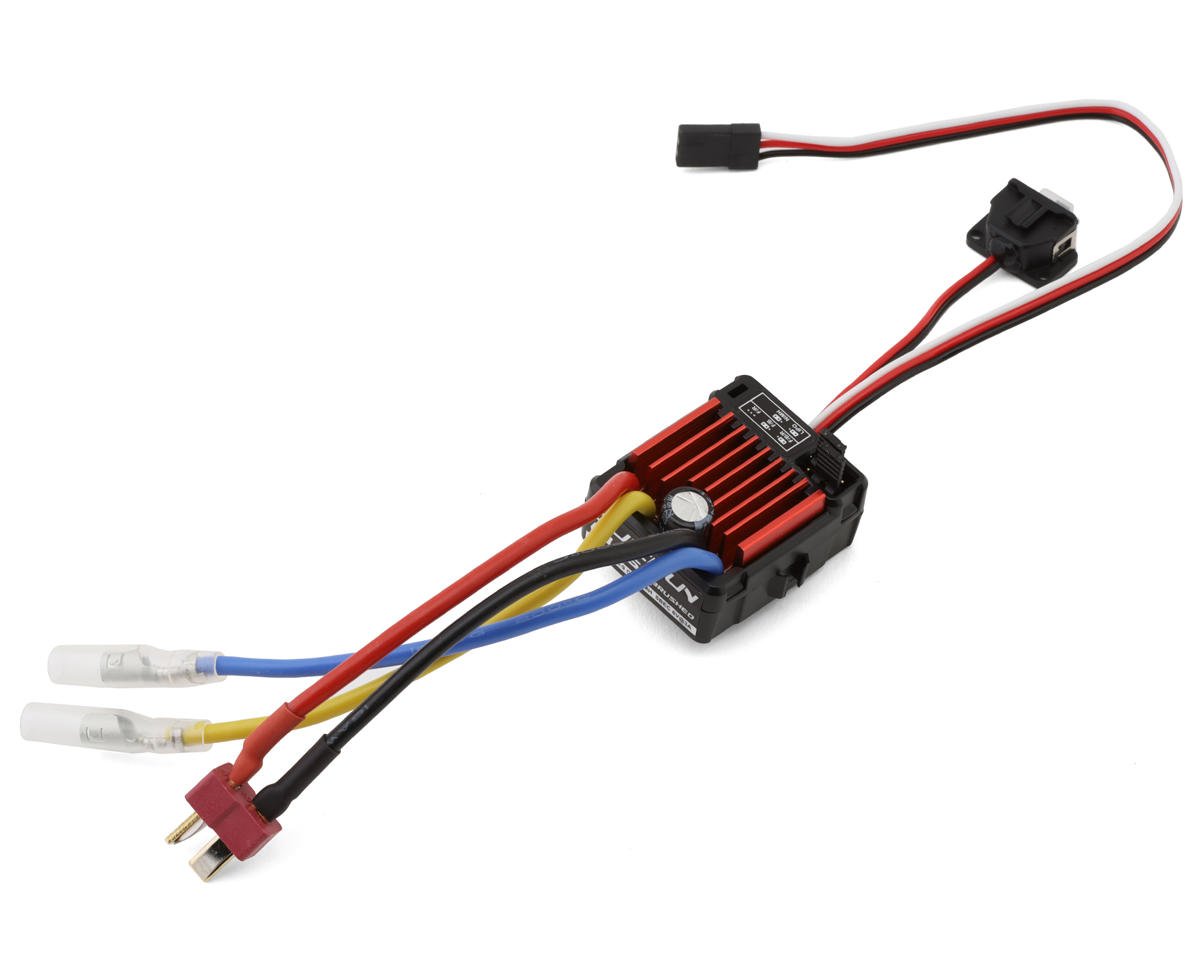

Hobbywing Quicrun 1060 1/10 Brushed ESC [HWA30120203]

ESC Overview:

The Hobbywing Quicrun 1060, is meticulously crafted to serve as the ideal ESC for 1/10th scale applications powered by brushed motors. This compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures.

Features:

• Extreme performance
• Small in size, with a built-in capacitor module
• Great current endurance capability
• Parameters are easily set with ESC jumpers
• Easy-to-use automatic throttle range calibration
• Great built-in BEC output capacity
• Built-in capacitor
• IP-67 waterproof Rating

Specifications:

• Scale: 1/10
• Brushed/Brushless: Brushed
• Sensored/Sensorless: Sensorless
• Waterproof: IP-67
• Current:
Forward:
• Continuous: 60A
• Peak: 360A

Reverse:

• Continuous: 30A
• Peak: 180A
• Input Voltage: 2-3S LiPo
• BEC Output:5V @ 2 A
• Output Connectors: 4mm Bullets
• Battery Connector: T-Style
• Dimensions: 1.39×1.26×0.70″ (35.5×32.18x18mm)
• Weight: 1.37oz (39g)

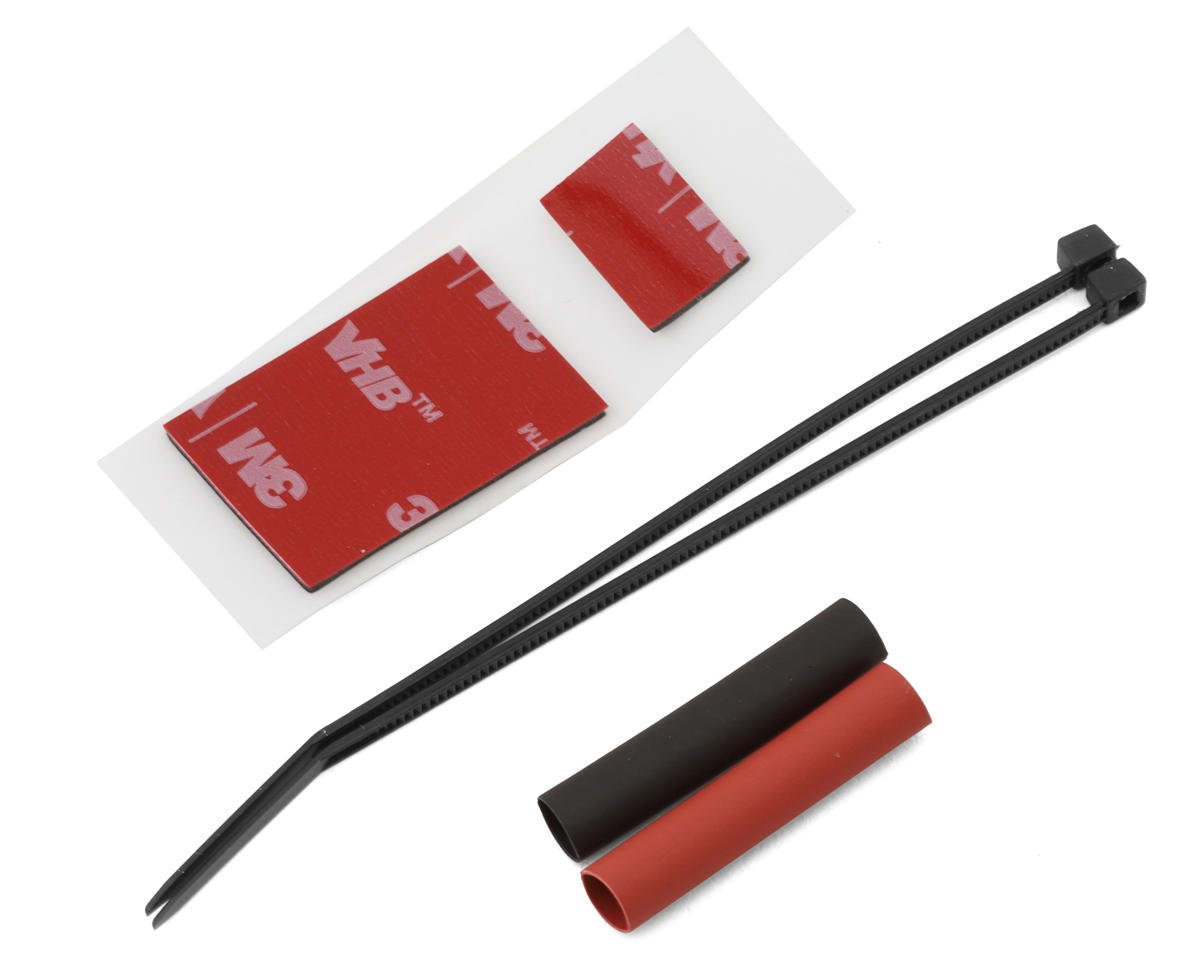

Includes

• (1) Quicrun 1060 Brushed ESC
